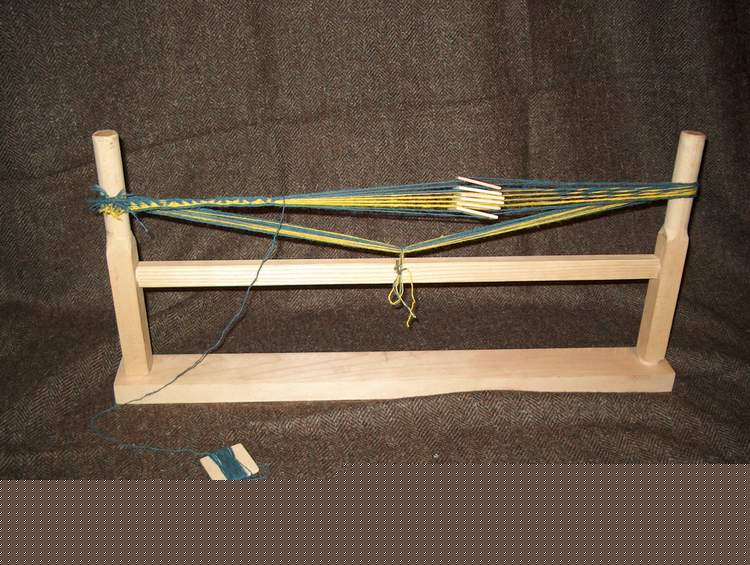

The original was about 6 feet long and 3 high - mine is somewhat smaller - about 2 1/2' long by1 foot high.

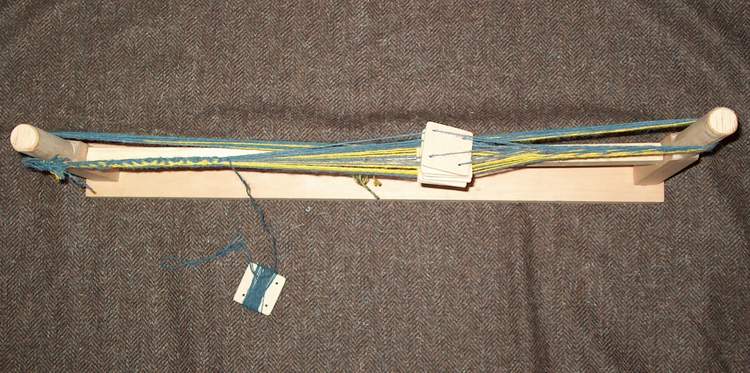

Top view -- the warp is a continuous loop around the 2 upright posts

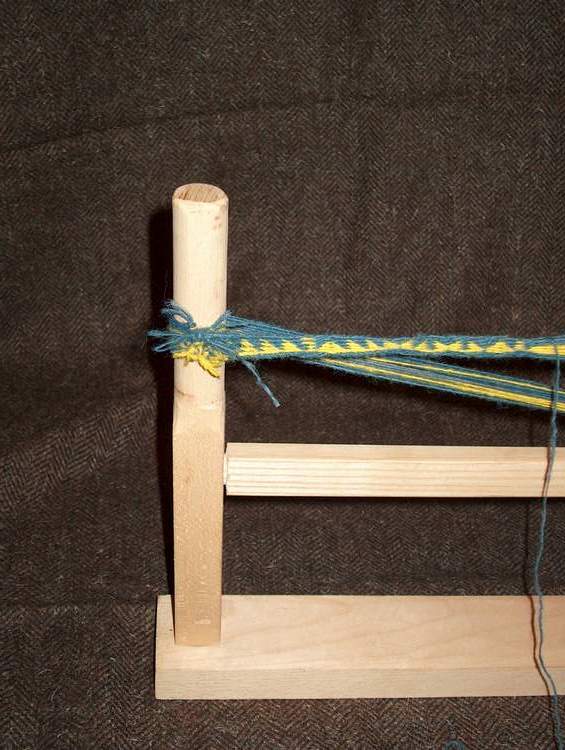

Closeup of the weaving

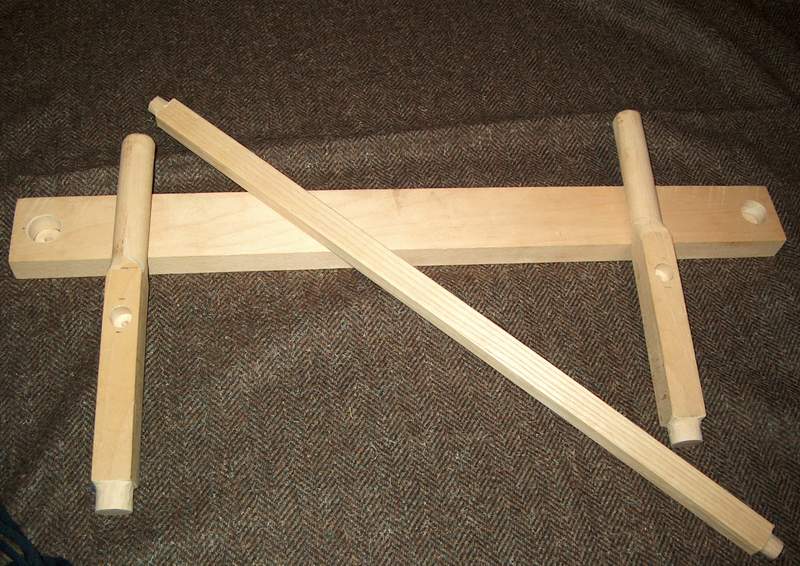

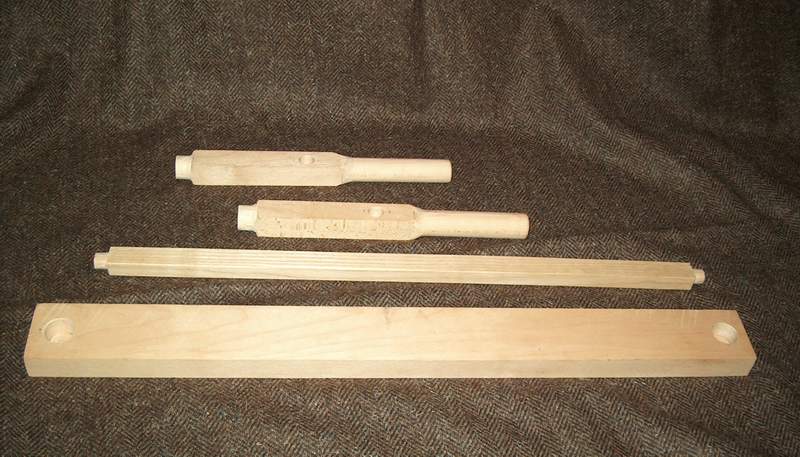

Loom taken apart - mortice and tennon joints

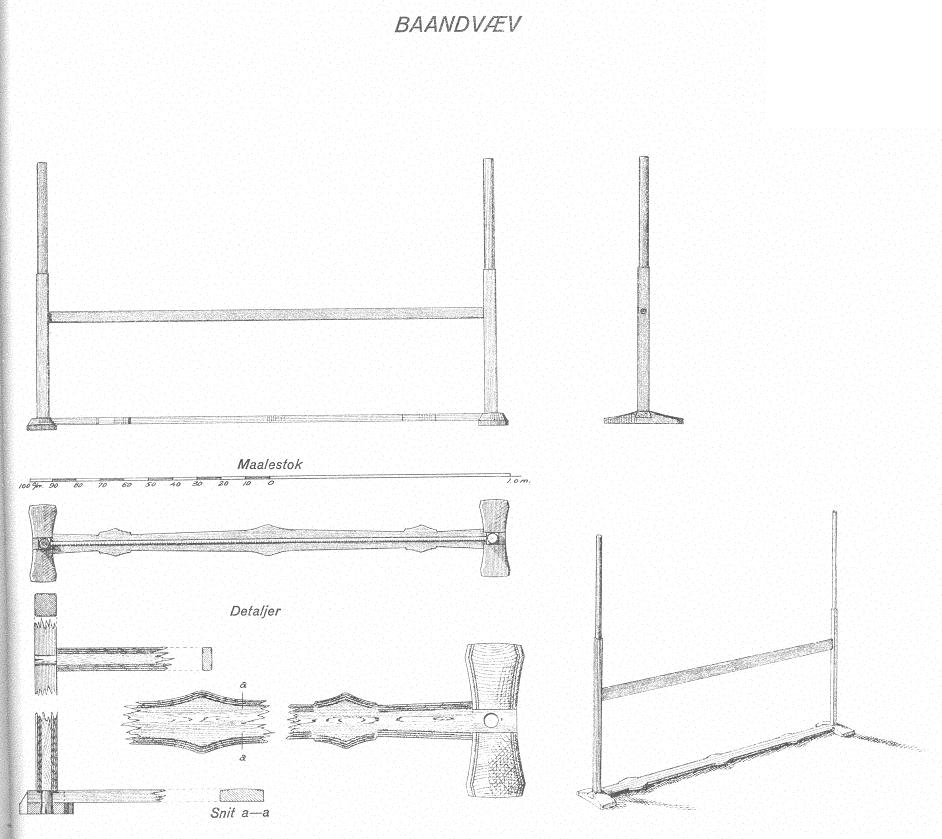

Drawing of the original - thanks to Robert Schuster who has _lots_ of good information here:
